Refinery Turnaround Planning: A Comprehensive Guide to Successful Maintenance Execution

Refinery turnarounds represent critical periods in facility operations where comprehensive maintenance, repairs, and upgrades are performed to ensure optimal

plant performance. As a Special Projects Operator (SPO), understanding the intricacies of turnaround planning and execution is crucial for minimizing downtime and maximizing efficiency. This guide explores the essential components of successful turnaround planning, from initial assessment through completion.

Key Takeaways

• Thorough pre-turnaround planning is essential for identifying critical paths and maintenance requirements

• Chemical cleaning methods must be carefully selected based on system specifications

• Proper tool selection and verification procedures ensure efficient maintenance execution

• Documentation and safety protocols are crucial throughout the entire turnaround process

• Strategic planning can significantly reduce facility downtime and maintenance costs

Pre-Turnaround Planning Essentials

The foundation of a successful turnaround begins with comprehensive planning meetings where work scope development takes center stage. During these initial sessions, teams review maintenance lists, identify chemical cleaning requirements, and plan Critical Instrument Checks (CICs). The selection of contractors and identification of critical paths, particularly for complex operations like catalyst changeouts, forms the backbone of the planning phase.

Equipment Isolation Strategies

Developing robust isolation procedures requires careful consideration of system-specific requirements. Blinding specifications must be meticulously planned, with particular attention to chemical compatibility and safety procedures. Each system requires a tailored approach to cleaning and isolation, backed by thorough documentation and approval processes.

Chemical Cleaning Methodologies

Fill and Soak Process

The fill and soak method involves introducing cleaning solutions into isolated systems for predetermined periods. This chemical cleaning approach proves particularly effective for systems with heavy deposits or contamination. Timing considerations are crucial, as insufficient exposure can lead to incomplete cleaning while extended periods may impact the overall turnaround schedule.

Circulation Cleaning Systems

Circulation cleaning provides a more dynamic approach to system maintenance. This method requires specialized equipment to maintain continuous flow of cleaning solutions through the system. Monitoring parameters such as flow rates, temperature, and chemical concentrations ensures optimal cleaning effectiveness while maintaining system integrity.

Vapor Phase Applications

Vapor phase cleaning utilizes steam injection combined with chemical solutions to clean system components. This method proves particularly effective for large volume vessels and vessels that are not rated for full liquid volume.  Vapor phase cleaning drastically reduces the cleaning time.  It allows the bypass of engineering approval on liquid packing the tower.  Careful control of process parameters, including temperature, chemical concentration, and steam injection rate is essential for safety and effectiveness.

Tool Selection and Preparation

Critical Maintenance Tools

The success of turnaround operations heavily depends on having the right tools available. Essential equipment includes:

Spreading Tools

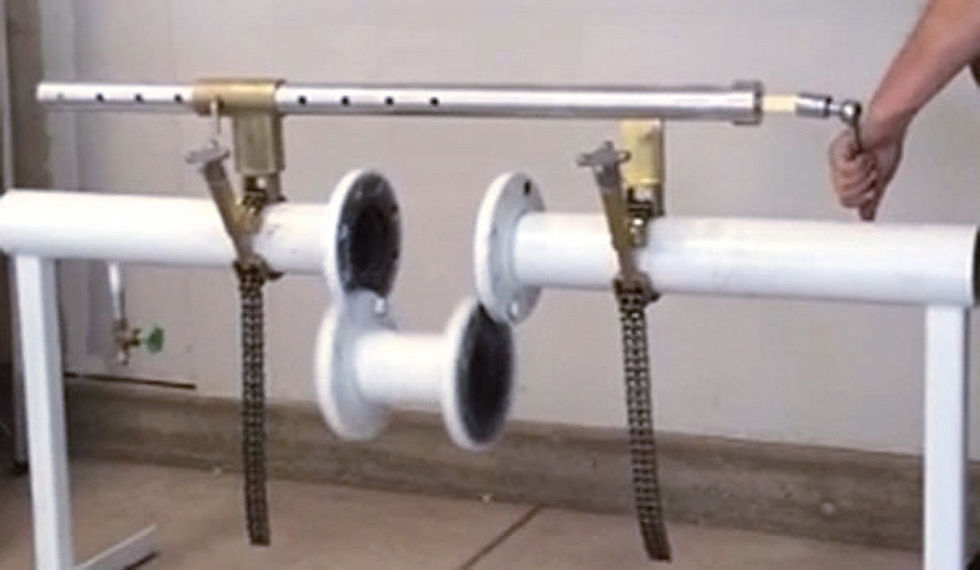

Flange spreaders and pipe spreaders must be readily available in various sizes to accommodate different system requirements.  These tools are primarily used for blind installation, quick valve removal, and overall reduced downtime, while providing enhanced safety. Regular inspection and maintenance of these tools ensure reliable operation during critical procedures.

Rod Out Equipment

A comprehensive selection of rod out tools ranging from large-diameter to instrument-specific sizes is crucial. These tools play a vital role in both initial cleaning operations and final system verification.  A & W Devices provides a wide range of tool sizes to fit all your rod-out needs.

System Verification Procedures

Instrument Tap Maintenance

Proper maintenance of instrument taps requires specialized attention. A & W Devices 07 and 16 serious rodout tools are essential for clearing and verifying flow, pressure, level and temperature transmitters/analyzers. This process ensures accurate readings and reliable system operation post-turnaround and start-up procedures.

Quality Control Measures

Implementation of rigorous quality control procedures throughout the turnaround process ensures all maintenance objectives are met. This includes:

- Systematic tap clearing verification

- Instrument line flow testing

- Calibration confirmation

- Documentation of all completed work

Safety and Compliance

Maintaining strict adherence to safety procedures is paramount during turnaround operations. This includes proper use of Personal Protective Equipment (PPE), adherence to permit requirements, and careful management of chemical handling procedures. Environmental compliance measures must be documented and verified throughout the process.

Final System Preparation

Before returning systems to service, comprehensive verification of all maintenance work is essential. This includes confirming instrument tap clearance, blind removal, system cleanliness, and operational readiness. Proper documentation and handover procedures ensure smooth transition back to normal operations.

For specialized turnaround tools and professional consultation on maintenance planning, contact A & W Devices at 925-516-4204. Our expertise in providing custom tool solutions and comprehensive support services can help optimize your turnaround execution.
